PRODUCT Your current location：Home > PRODUCT > Pneumatic chuck > Fixed type > Fixed type

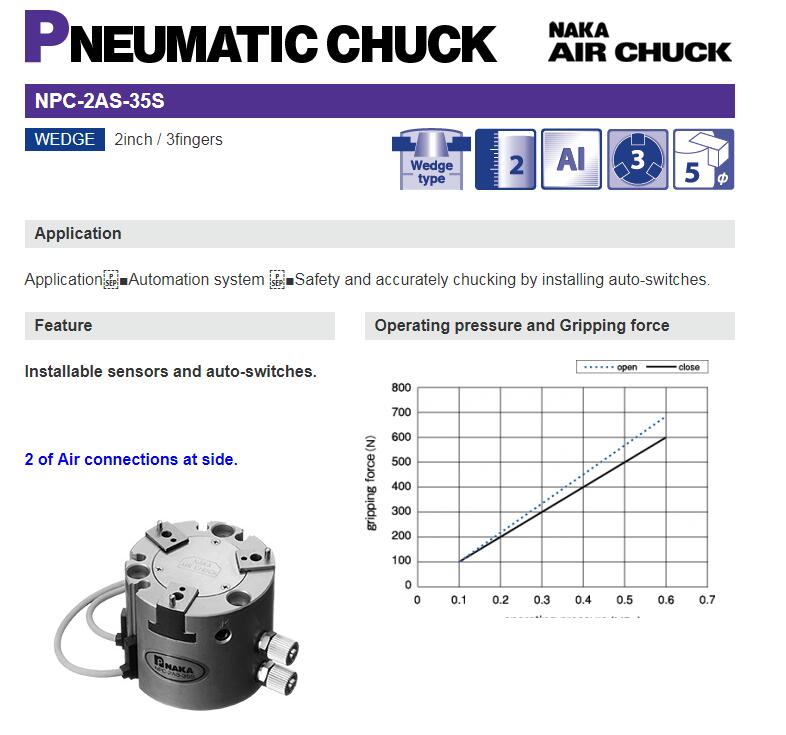

NPC-2AS-35S

Click：1233    Date：2019/7/1    Return
  • Details


    • Specification


      Description

      		NPC-2AS-

      Type

      		35S

      Repeatability (mm)

      		0.01

      Number of jaws

      		3

      Stroke per jaw (φmm)

      		5

      Fixing hole circle

      		P.C.D42

      Top fixing bolt

      		M4×3

      Bottom fixing Bolt

      		M5×3

      Bottom  insertion dimension (mm)

      (inside diameter×depth凸.凹）

      φ30 +0.05/0×2

      Working fluid

      Compressed Air

      Pneumatic operating pressure (MPa)

      		0.15〜0.6

      Body material

      AI

      Weight (g)

      290

      Permissible revolutions (min-1)

      		-

      Gripping force (calculated value) (N)

      99（at 0.1MPa）

      Dimension

      npc_2as_35s
